ANSI FL-1
Performance by mode
| Mode | Lumens | Runtime | Distance | Intensity |
|---|---|---|---|---|
| High | 500 | 1h 50min | 100 m | 2500 cd |
| Med | 100 | 6h | 55 m | 756 cd |
| Low | 30 | 25h | 30 m | 225 cd |
| Eco | 5 | 96h 50min | 11 m | 30 cd |
| Read | — | 96h | — | — |
| Red light | — | 55h | 25 m | — |
| Red & blue flash | — | 11h | — | — |
| Rgb | — | — | — | — |
| Aurora | — | — | — | — |
Specifications
Size
Length: 69.3 mm · Width: 40.4 mm · Height: 37 mm
Weight
65 gm, including battery
Batteries
Fenix HL17R built-in 1000mAh Li-ion rechargeable battery

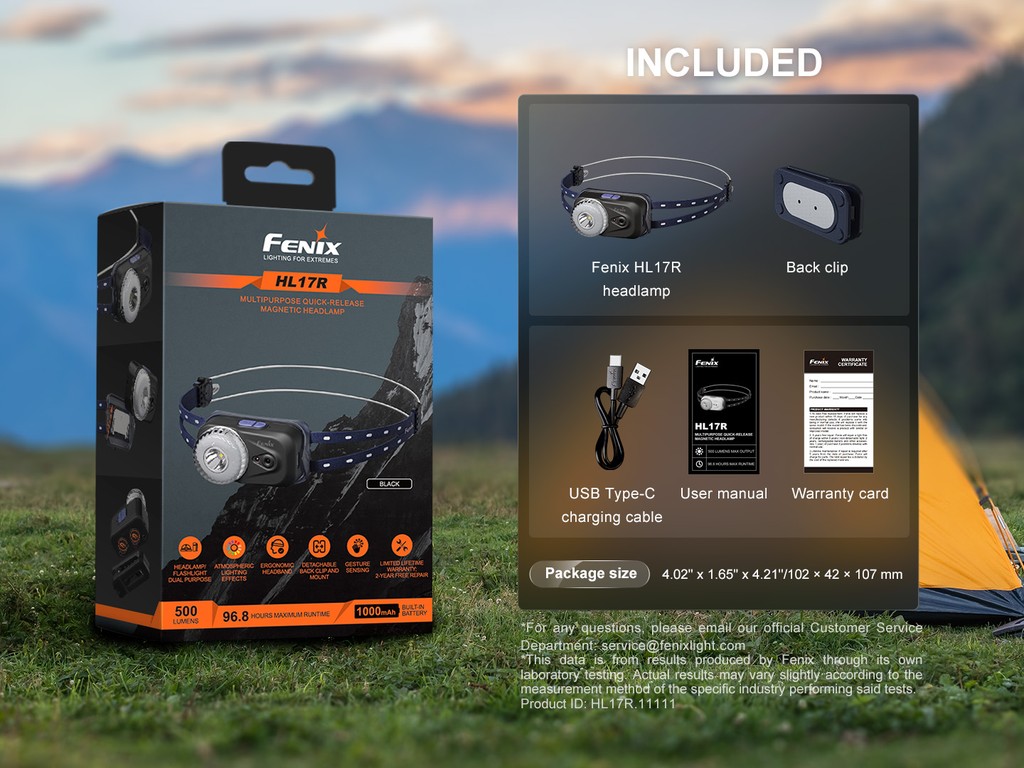

What's included
back clip; USB Type-C charging cable; user manual; warranty card
Key features
- 500 lumens maximum output with 100 meters beam distance from a Luminus SST20 LED rated for 50,000 hours

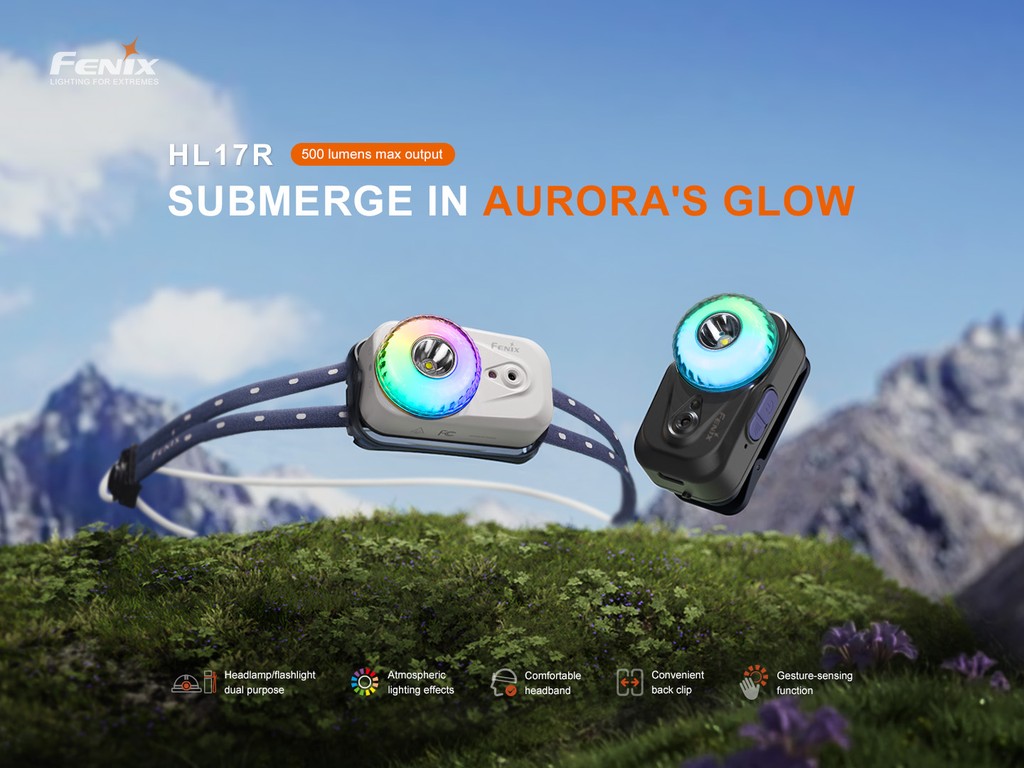

- Five atmospheric scene modes — read, aurora, red light, RGB, and red & blue flash — for campsite ambiance and safety

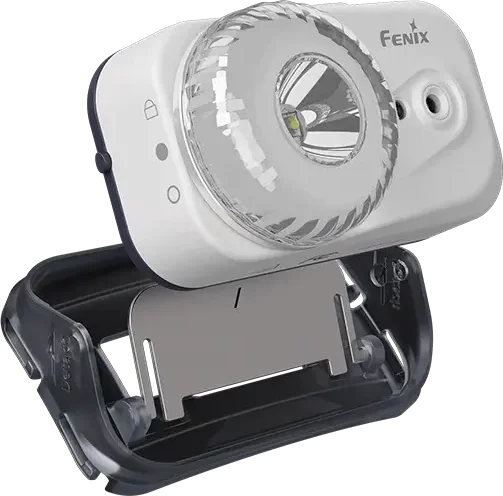

- Magnetic quick-release mount snaps on without visual alignment; detach for use as clip-on light or magnetic work light

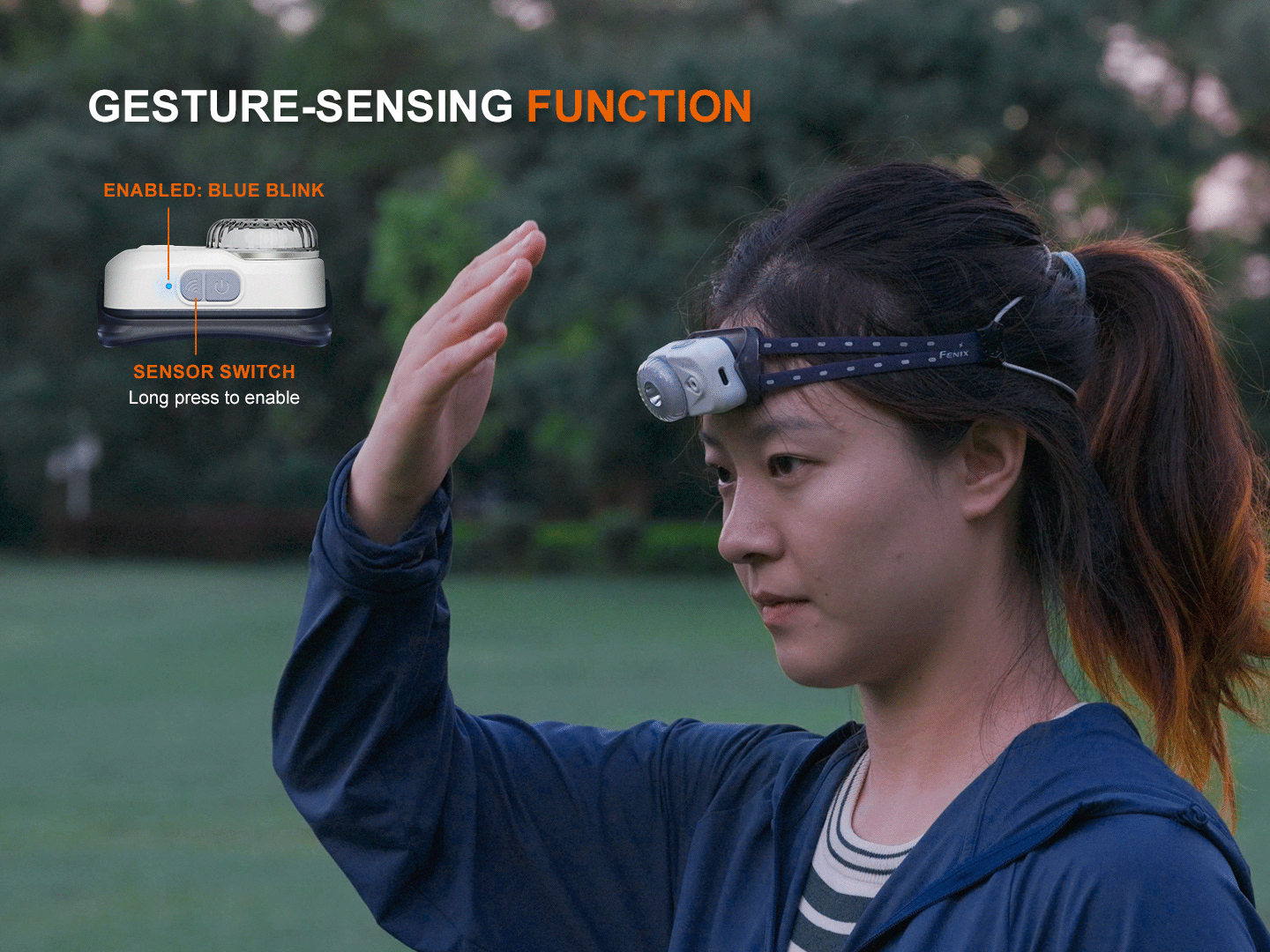

- Gesture-sensing function turns the headlamp on or off with a wave of the hand

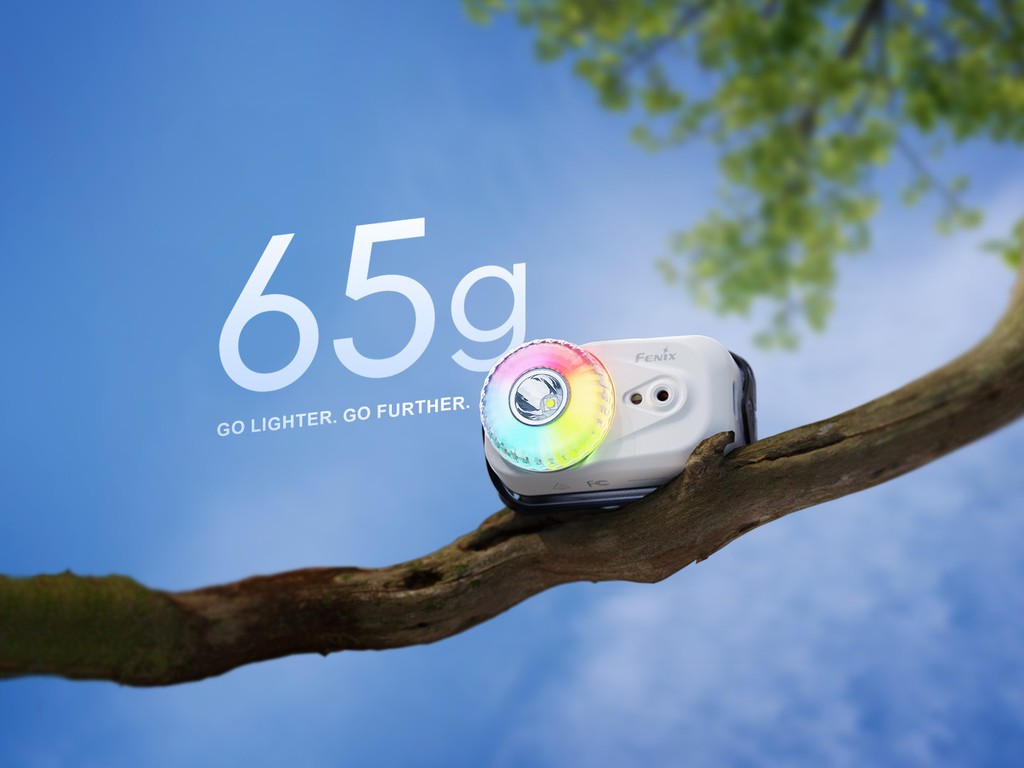

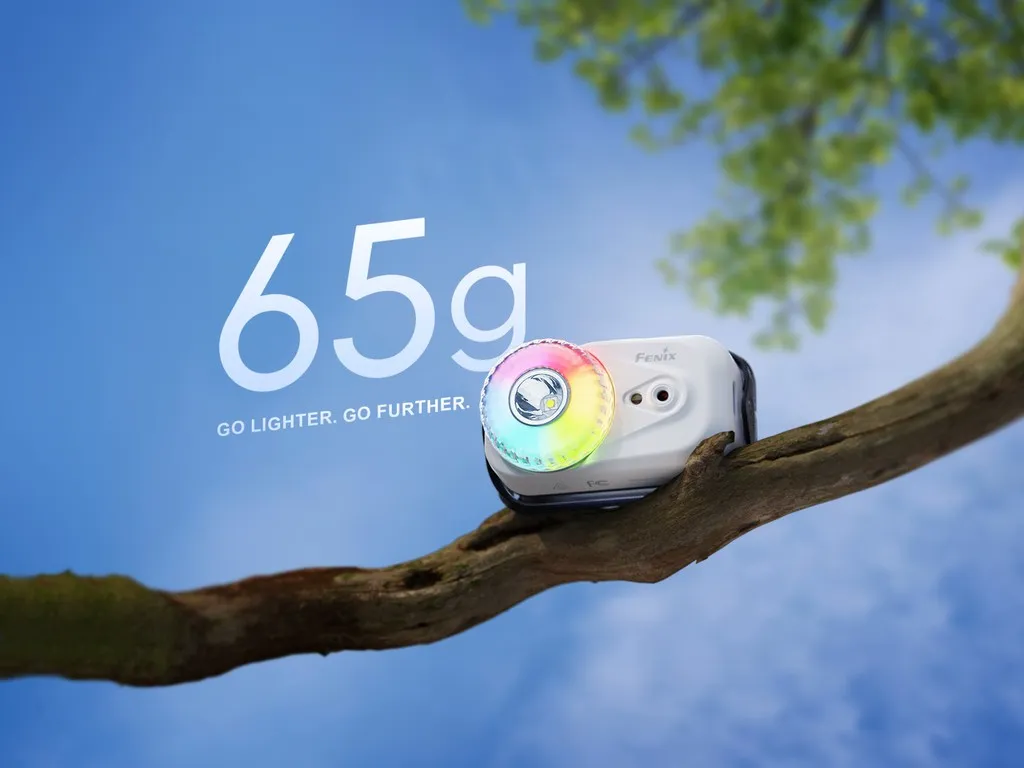

- Ultra-lightweight 65-gram design with high-strength plastic construction

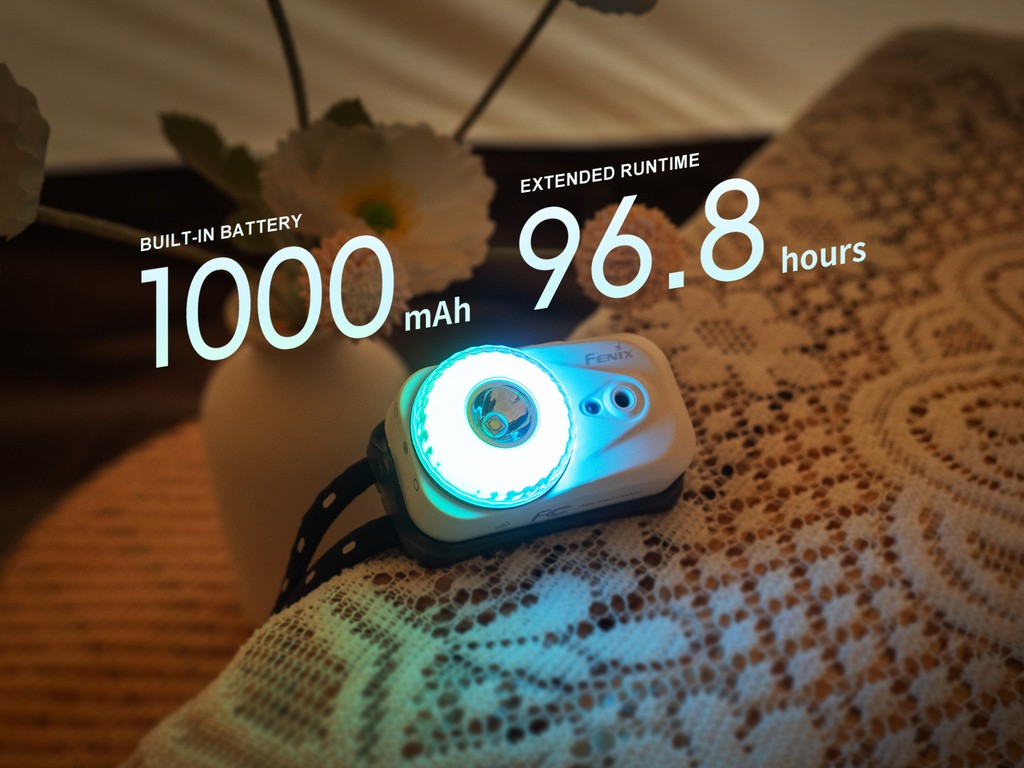

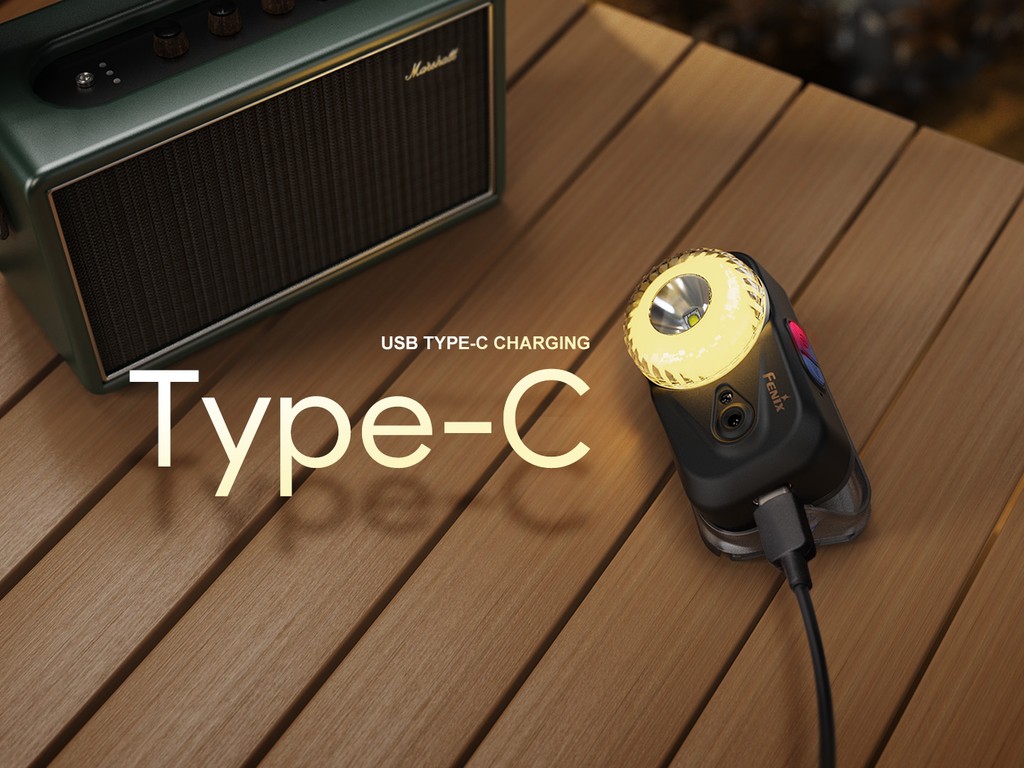

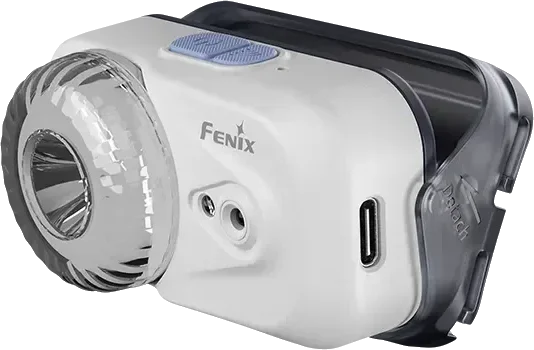

- Built-in 1000mAh battery with up to 96 hours 50 minutes runtime on eco; USB Type-C charging

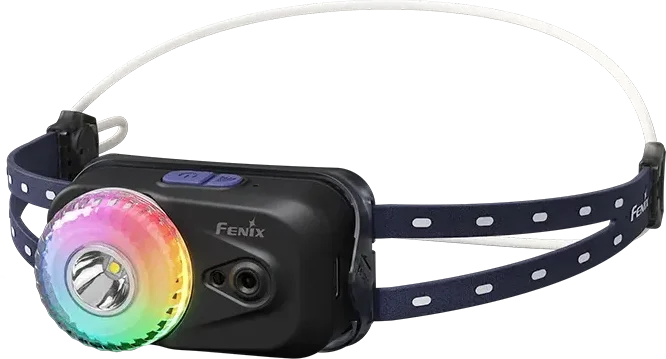

- Dual-section elastic headband distributes pressure for a weightless wearing experience

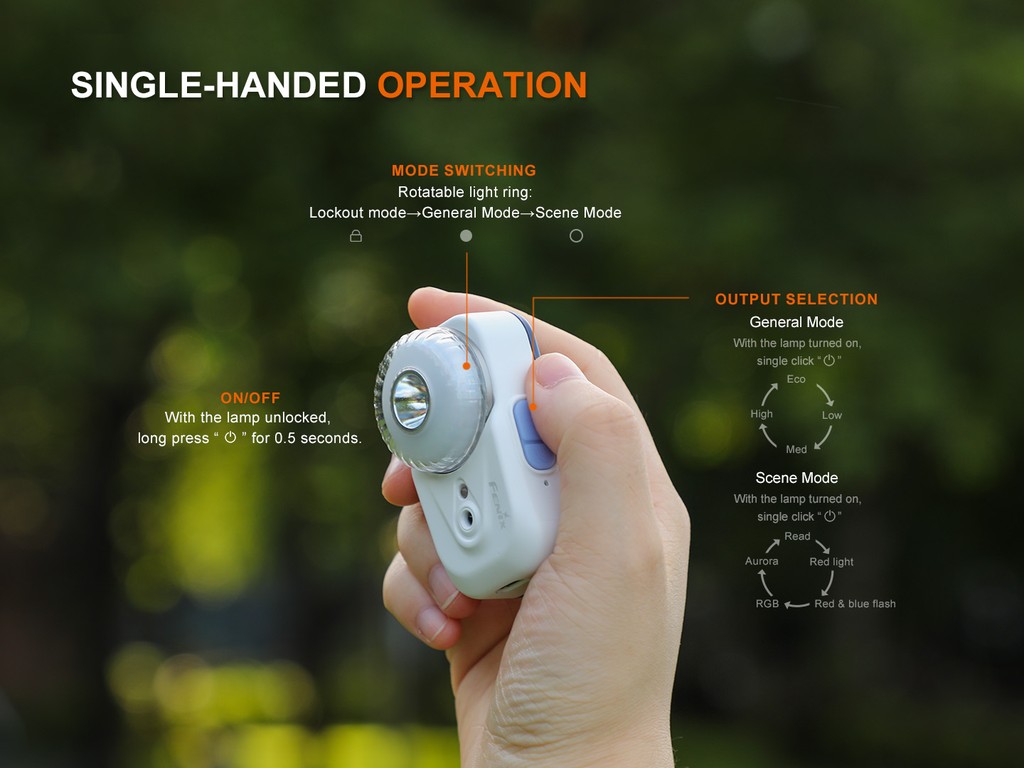

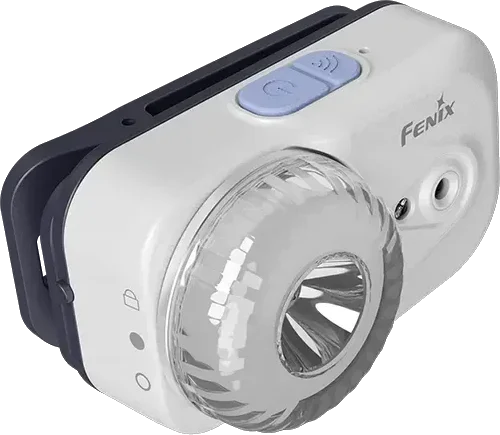

- Rotatable light ring and two electronic switches for single-handed, glove-friendly operation with lockout

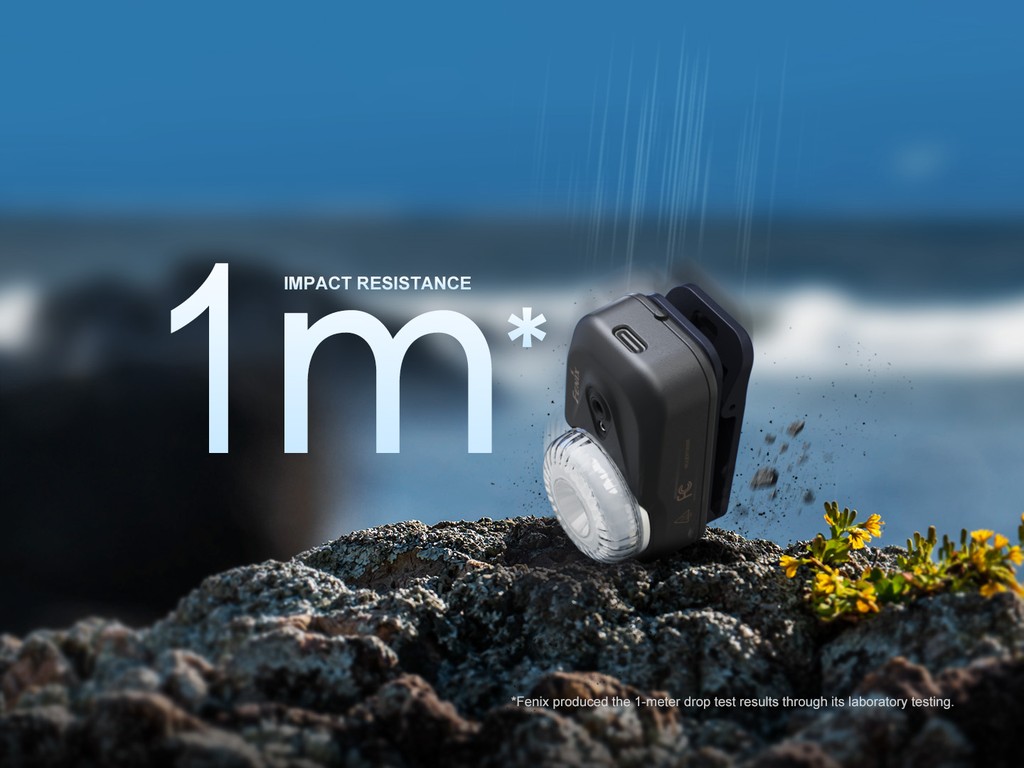

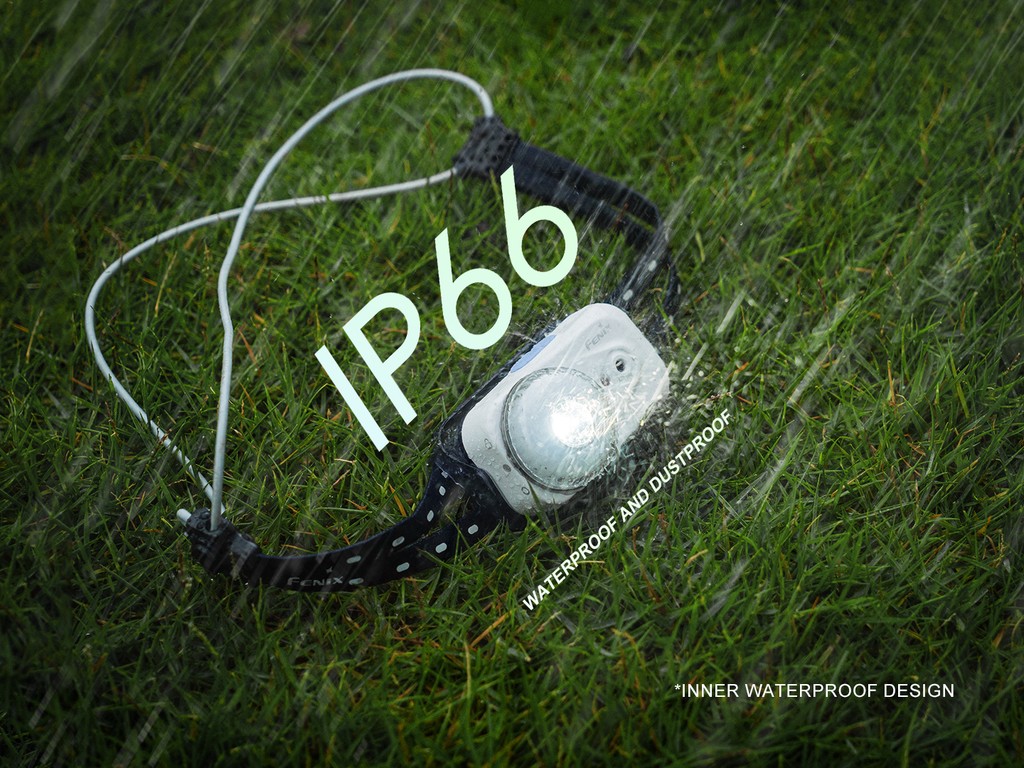

- IP66 waterproof and dustproof with inner waterproof treatment and 1-meter impact resistance
- Battery level indication and low-voltage warning for reliable power management
Compare with other lights
Specification
Price
Max lm / time
Min lm / time
Max beam
Length
Weight
Battery
—
User manual
Fenix HL17R user manual (.pdf)
