ANSI FL-1

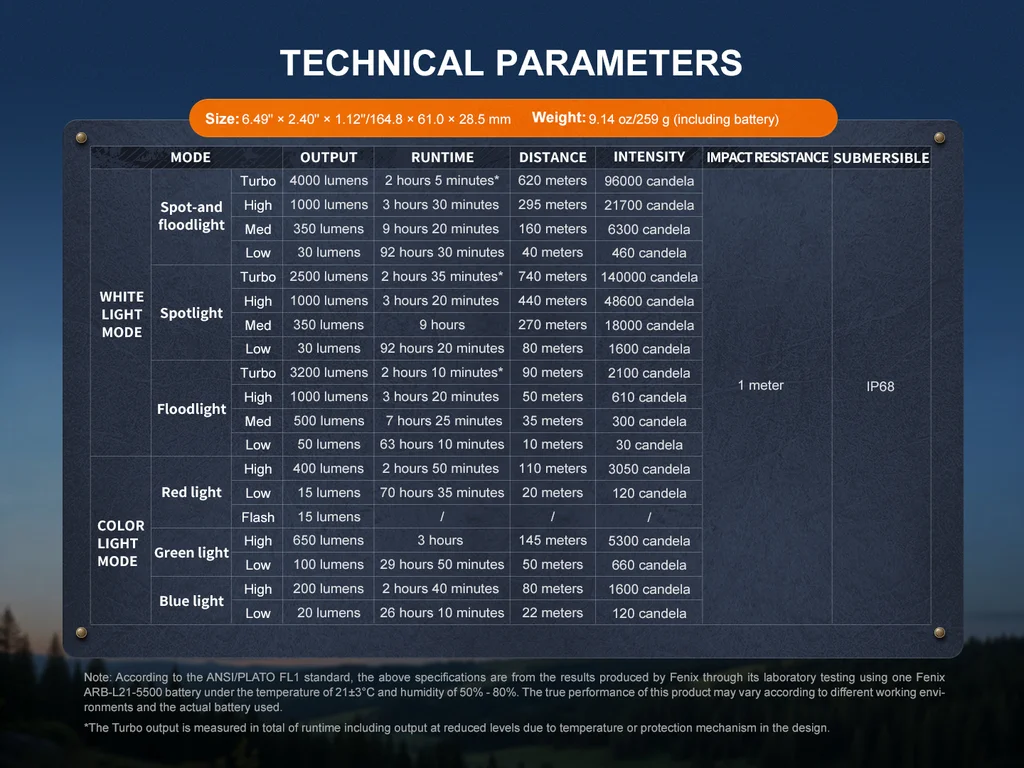

Performance by mode
| Mode | Lumens | Runtime | Distance | Intensity |
|---|---|---|---|---|
| Spot and flood turbo | 4,000 | 2h 5min | 620 m | 96000 cd |
| Spot and flood high | 1,000 | 3h 30min | 295 m | 21700 cd |
| Spot and flood med | 350 | 9h 20min | 160 m | 6300 cd |
| Spot and flood low | 30 | 92h 30min | 40 m | 460 cd |
| Spot turbo | 2,500 | 2h 35min | 740 m | 140000 cd |
| Spot high | 1,000 | 3h 20min | 440 m | 48600 cd |
| Spot med | 350 | 9h | 270 m | 18000 cd |
| Spot low | 30 | 92h 20min | 80 m | 1600 cd |
| Flood turbo | 3,200 | 2h 10min | 90 m | 2100 cd |
| Flood high | 1,000 | 3h 20min | 50 m | 610 cd |
| Flood med | 500 | 7h 25min | 35 m | 300 cd |
| Flood low | 50 | 63h 10min | 10 m | 30 cd |
| Red high | 400 | 2h 50min | 110 m | 3050 cd |
| Red low | 15 | 70h 35min | 20 m | 120 cd |
| Red flash | 15 | — | — | — |
| Green high | 650 | 3h | 145 m | 5300 cd |
| Green low | 100 | 29h 50min | 50 m | 660 cd |
| Blue high | 200 | 2h 40min | 80 m | 1600 cd |
| Blue low | 20 | 26h 10min | 22 m | 120 cd |
Specifications
Size
Length: 164.8 mm · Body diameter: 28.5 mm · Head diameter: 61.0 mm
Weight
259 gm, including battery
Batteries
One ARB-L21-5500 Li-ion Rechargeable Battery, included.

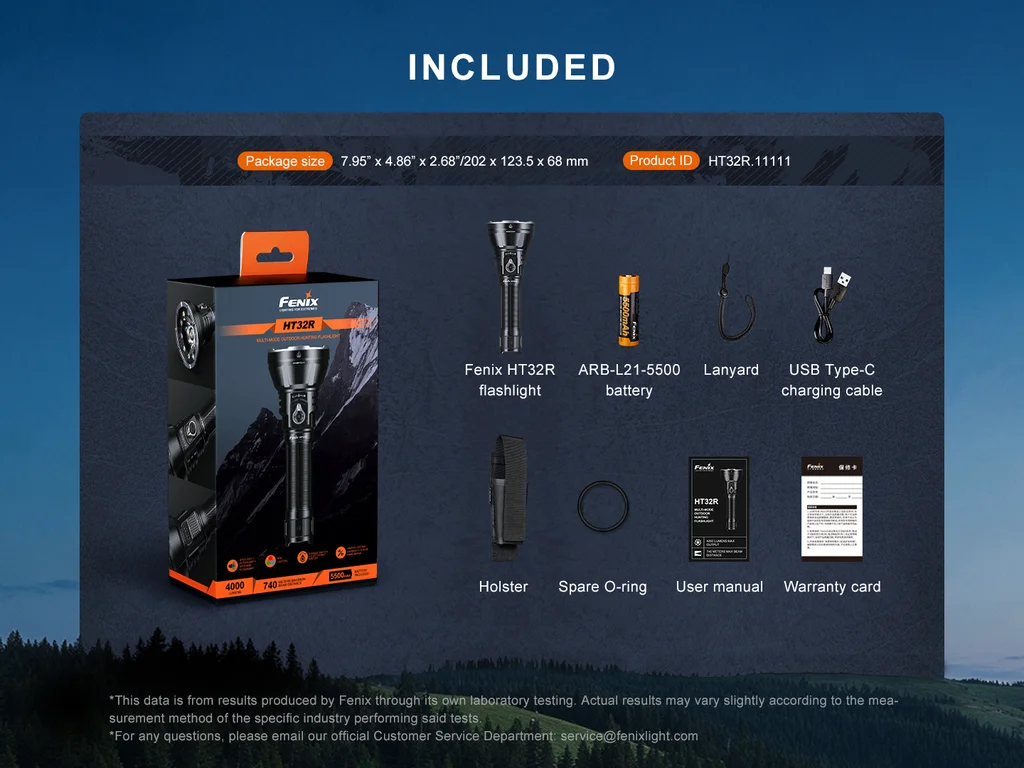

What's included
ARB-L21-5500 battery; USB Type-C charging cable; Holster; Lanyard; Spare O-ring
Key features
- 4000 lumens maximum output, 740 meters maximum beam distance.

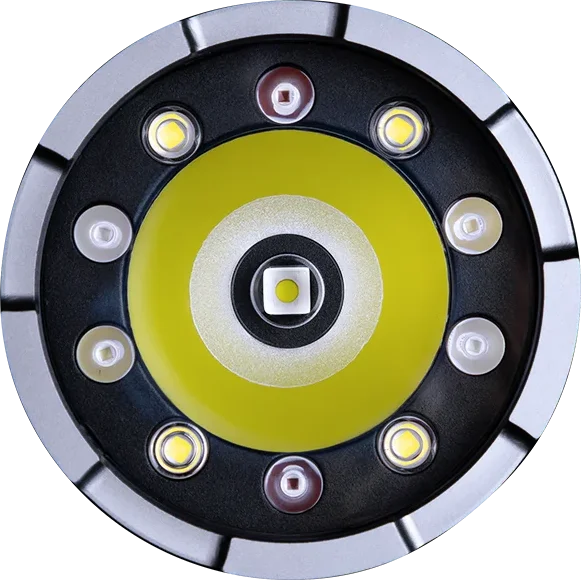

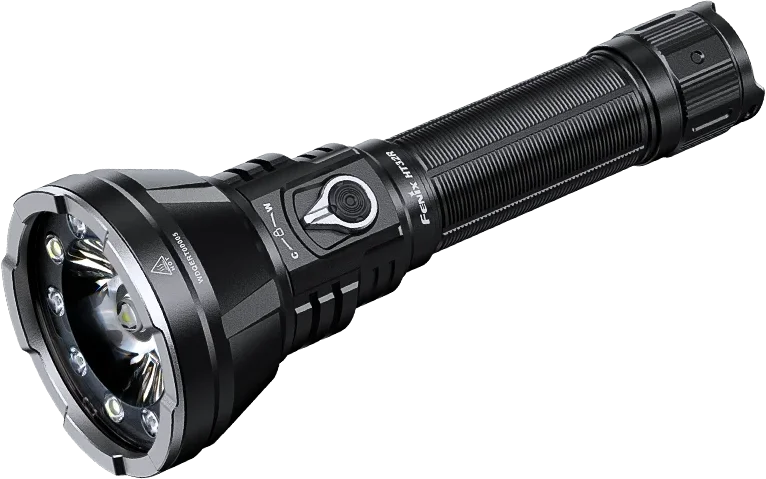

- Utilizes a TIR multi-LED lens, featuring 1 Luminus SFT42R LED for the central spotlight, 4 Luminus SST20F LEDs for the floodlight, and 6 Osram Ostar LEDs for the triple-color lighting.
- In White light mode, the maximum output of the spotlight is 2500 lumens and the floodlight is 3200 lumens.
- The maximum output of the red light is 400 lumens, the green light is 650 lumens, and the blue light is 200 lumens.

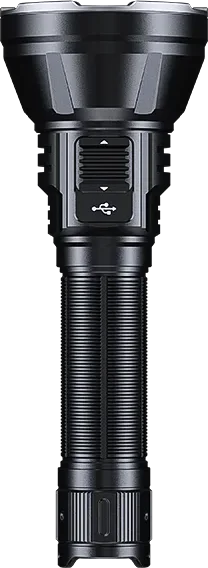

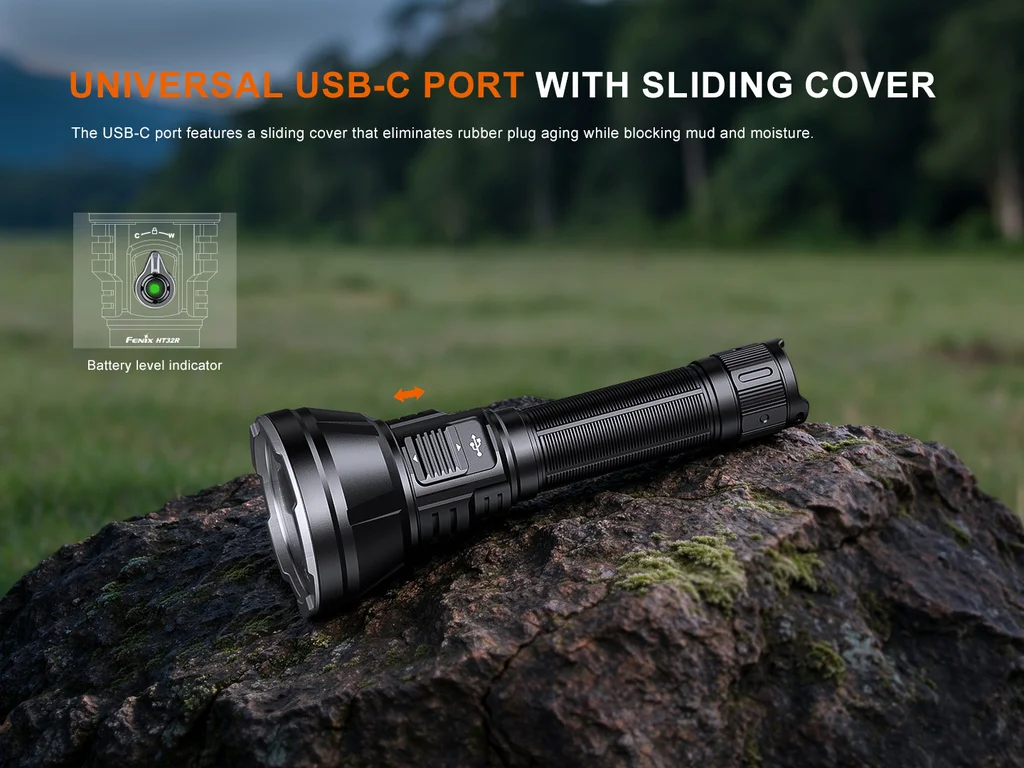

- Featuring a Type-C charging port on the neck with a sliding cover for dust and water protection.

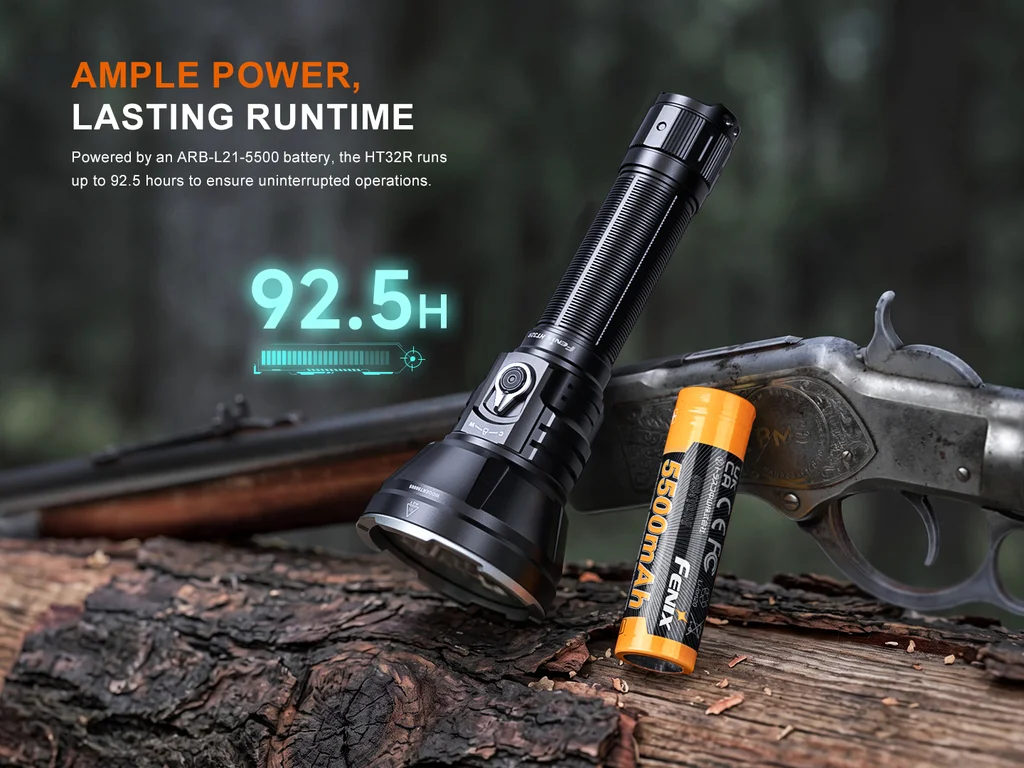

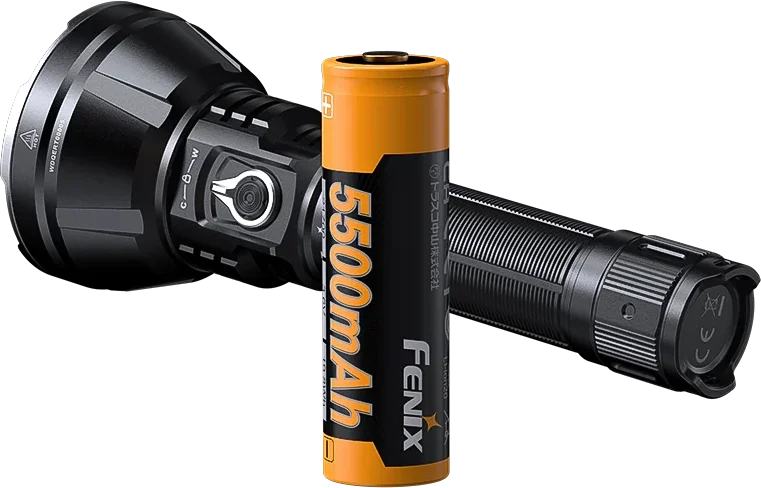

- Powered by an included ARB-L21-5500 battery.

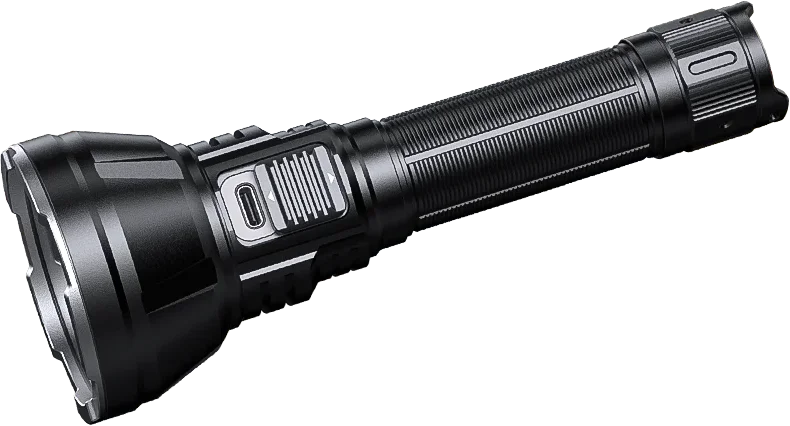

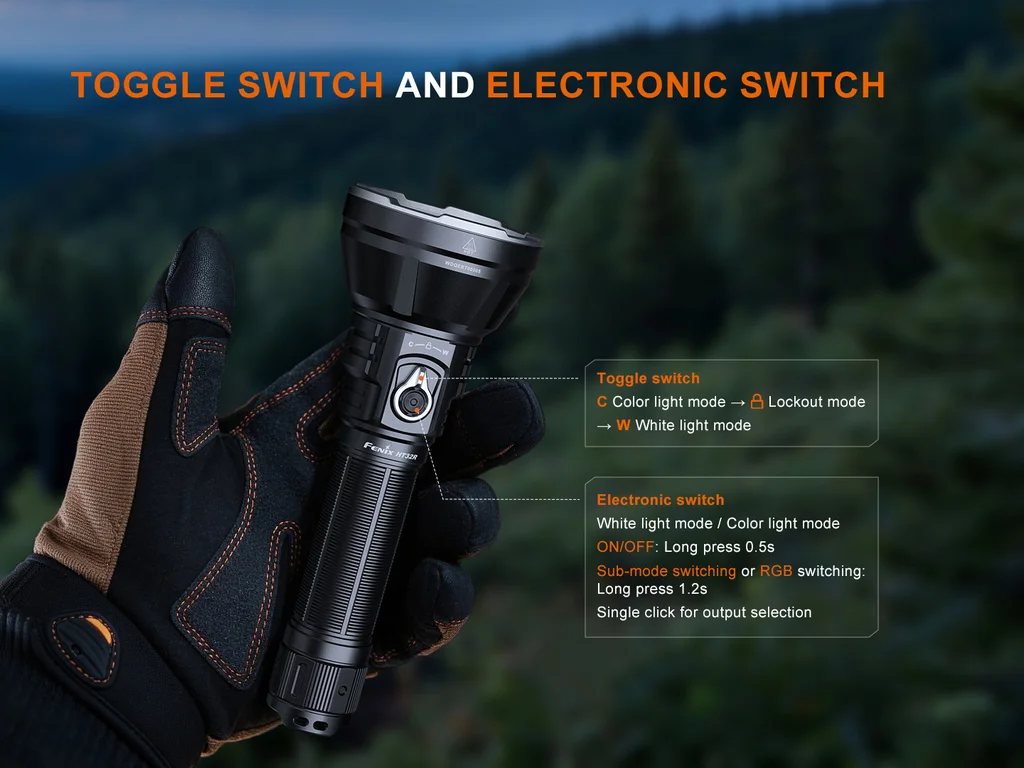

- Toggle switch and electronic switch for fast and simple operation.
- Made of A6061-T6 aluminum alloy material.
- Matte black, hard-anodized finish.
