ANSI FL-1

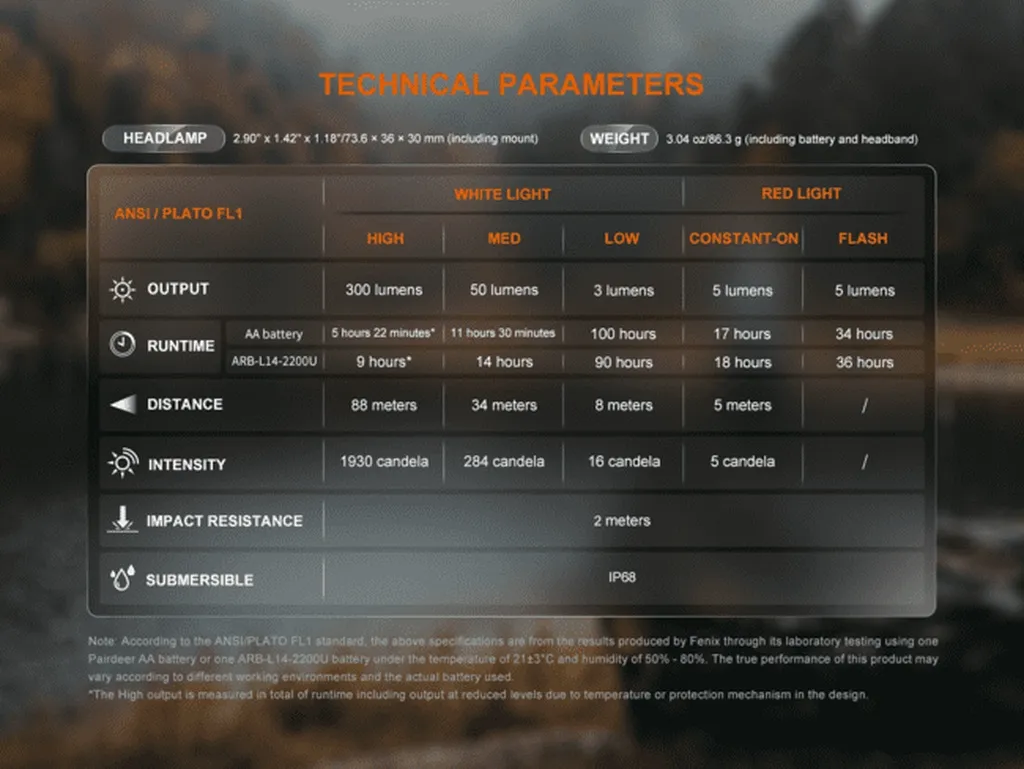

Performance by mode
| Mode | Lumens | Runtime | Distance | Intensity |
|---|---|---|---|---|
| High | 300 | 5h 22min | 88 m | 1930 cd |
| Med | 50 | 11h 30min | 34 m | 284 cd |
| Low | 3 | 100h | 8 m | 16 cd |
| Red | 5 | 17h | 5 m | 5 cd |
| Red flash | 5 | 34h | — | — |
Specifications
Size
Length: 73.6 mm · Width: 36 mm · Height: 30 mm
Weight
86.3 gm, including battery

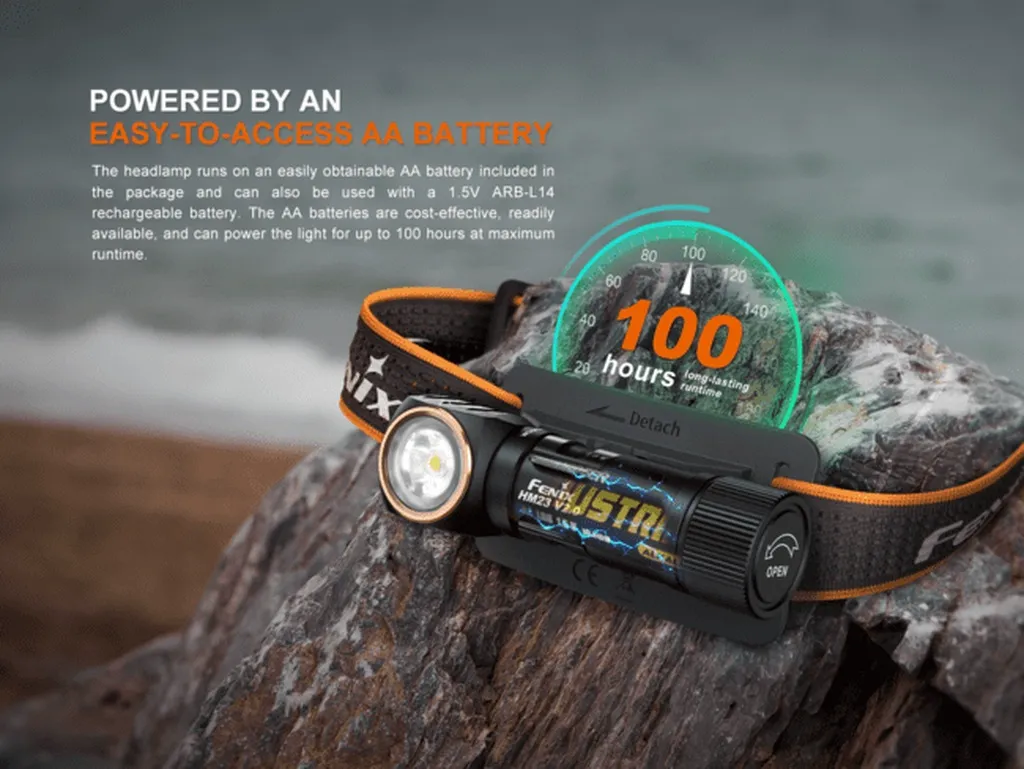

Batteries
One AA Battery (Included)

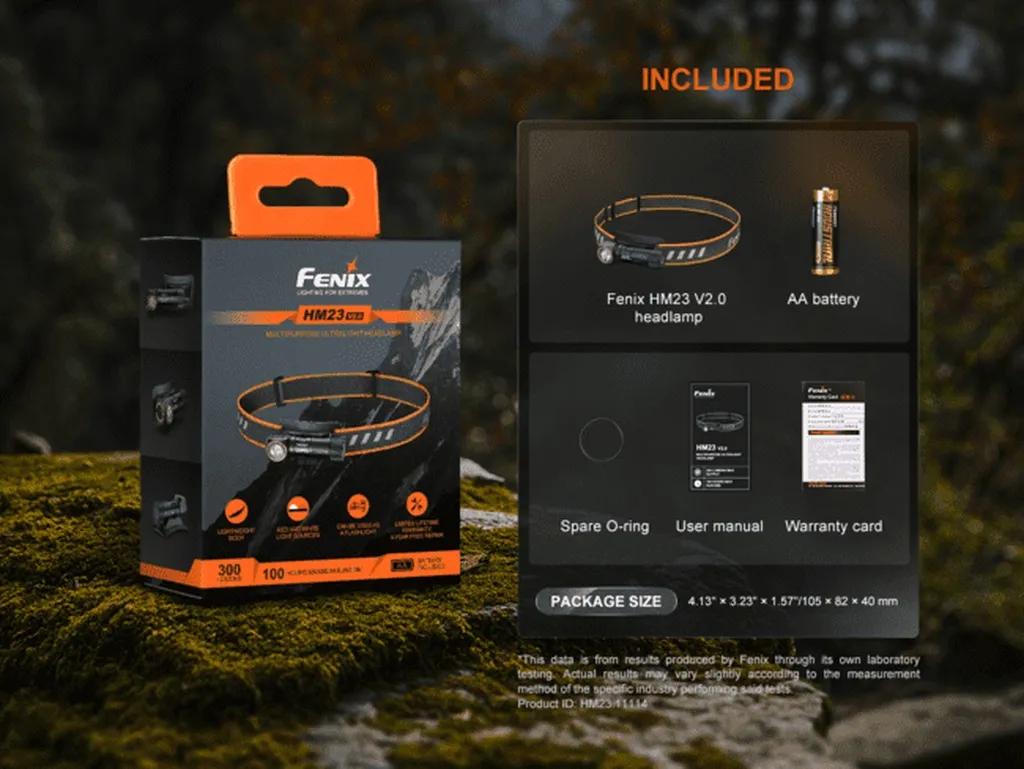

What's included
AA battery; spare O-ring
Key features
- 300 lumens maximum output, 80 meters maximum beam distance.
- Utilizes one Luminus SST20 white LED and two 2835 red LEDs; with a life span of 50,000 hours each.
- Powered by one AA battery and compatible with one 1.5V 14500 rechargeable battery.
- White and red light sources assist various lighting needs in different outdoor scenarios.
- Electronic lockout avoids accidental activation.

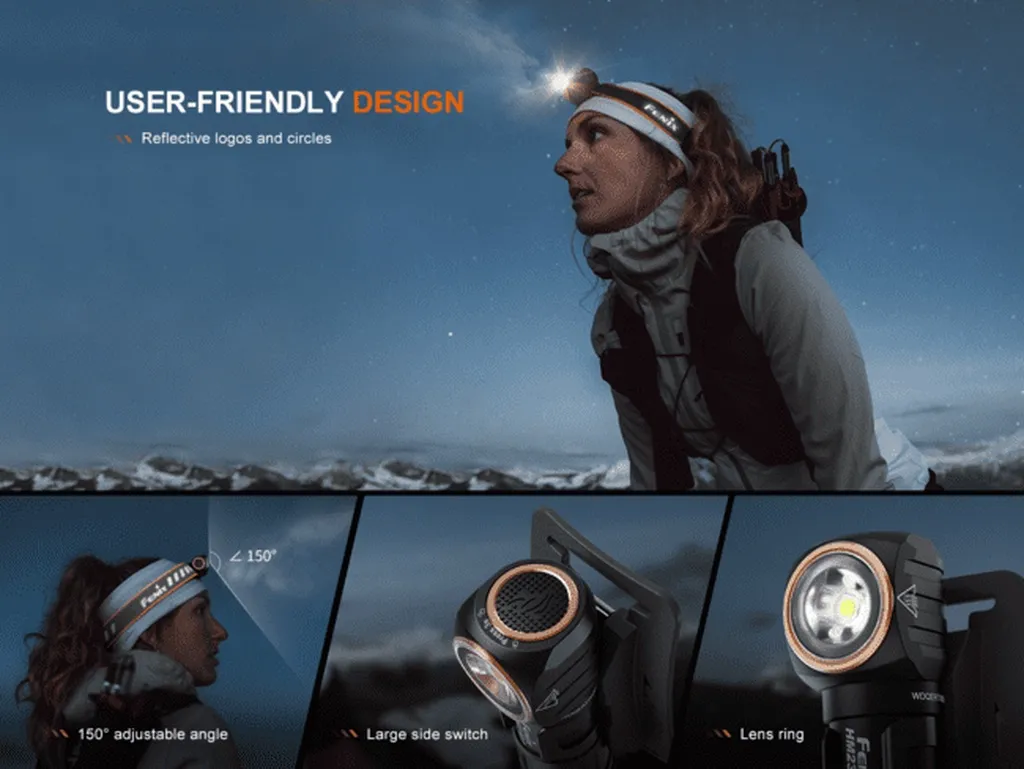

- Large side switch for fast and simple operation.
- Can be used as a headlamp and flashlight.

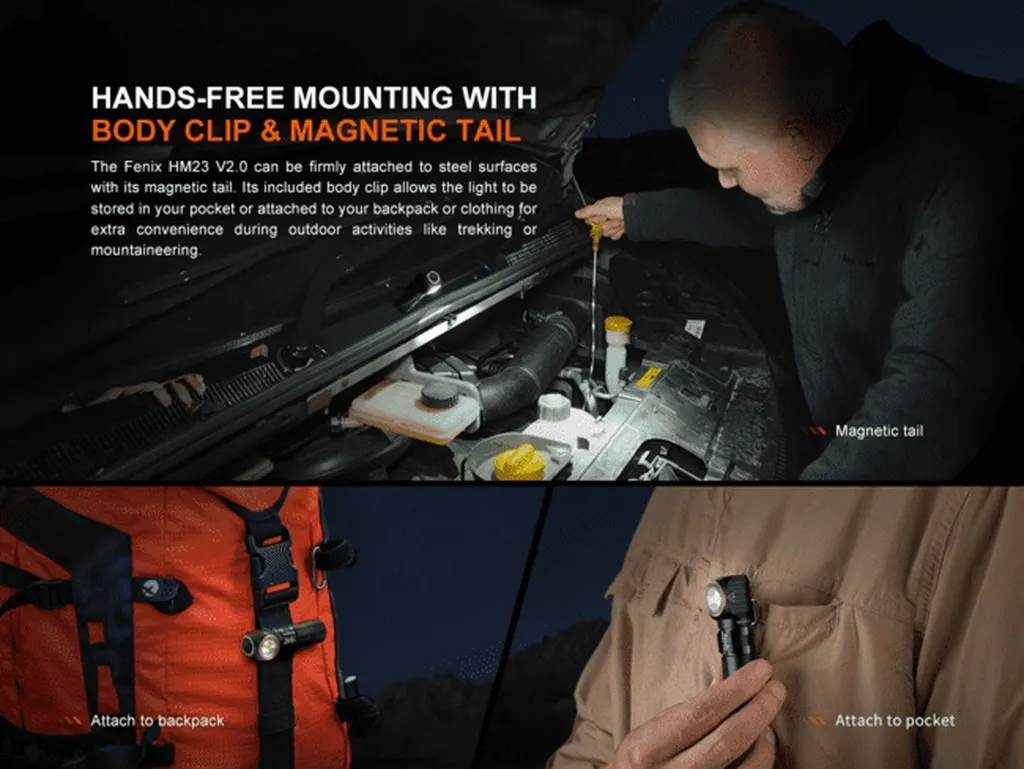

- Magnetic tail for hands-free use.
- Reverse polarity protection to protect from improper battery insertion.
- Lamp body is made of aluminum alloy material, lightweight and durable.
- IP68-rated protection and 2 meters impact resistance.
