ANSI FL-1
Performance by mode
| Mode | Lumens | Runtime | Distance | Intensity |
|---|---|---|---|---|
| Spotlight+floodlight turbo | 2,200 | 3h 40m | 226 m | 12813 cd |
| Spotlight turbo | 1,800 | 2h 46m | 230 m | 13220 cd |
| Spotlight high | 600 | 8h 50m | 150 m | 5648 cd |
| Spotlight med | 150 | 22h 30m | 74 m | 1376 cd |
| Spotlight low | 30 | 67h | 34 m | 284 cd |
| Floodlight high | 500 | 6h 44m | 51 m | 649 cd |
| Floodlight med | 150 | 16h 36m | 27 m | 184 cd |
| Floodlight low | 5 | 296h | 4 m | 4 cd |
| Red high | 140 | 7h | 28 m | 196 cd |
| Red med | 30 | 45h | 13 m | 42 cd |
| Red low | 5 | 193h | 4 m | 4 cd |
| Red flash | 5 | — | — | — |
Specifications
Size
Length: 80 mm · Width: 39.5 mm · Height: 52.5 mm
Weight
144 gm, including battery
Batteries
One ARB-L18-3400 Li-ion Rechargeable Battery
What's included
ARB-L18-3400 battery; spare O-ring; USB Type-C charging cable
Key features
- 2200 lumens maximum output, 230 meters maximum beam distance.

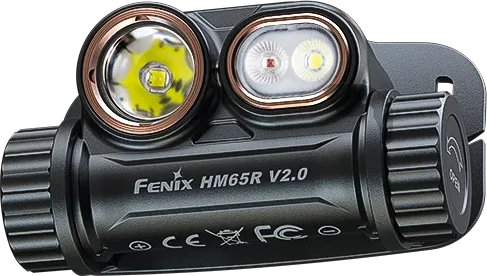

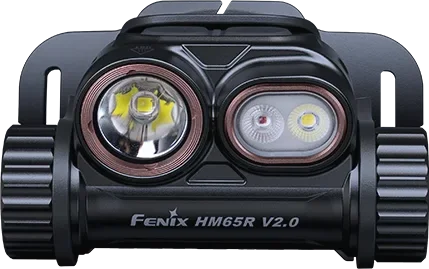

- Uses one Luminus SST40-GEN2 LED, one Luminus SST-20F LED, and one 3535 red LED; with a lifespan of 50,000 hours each.
- Spotlight, floodlight, combined output, and red light meet various lighting needs in complex outdoor scenarios.
- Magnesium alloy lamp body, lightweight and portable.

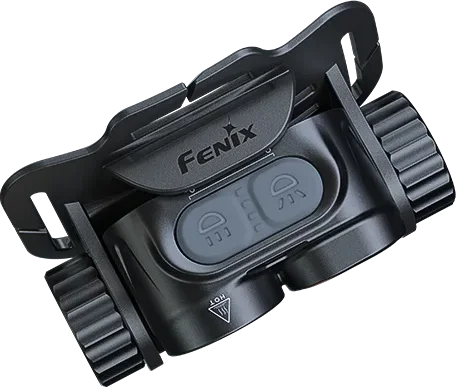

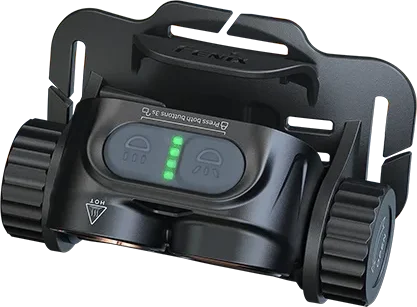

- Dual top switches allow for independent control of spotlight, floodlight, and brightness levels.

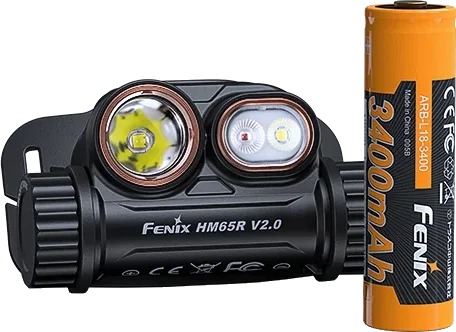

- Powered by an included ARB-L18-3400 replaceable battery.
- Inner waterproof USB Type-C charging port.
- IP68-rated protection and 2 meters impact resistance.
- Electronic and physical lockout features prevent accidental activation.
- Size: 3.15'' × 1.56'' × 2.07''/80 × 39.5 × 52.5 mm.

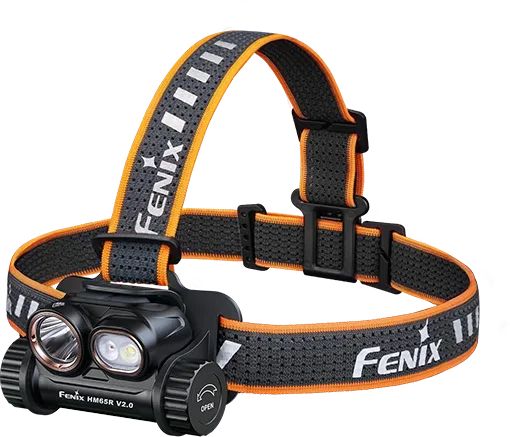

- Weight: 5.08 oz/144 g (including battery and headband).
Compare with other lights
Specification
Price
Max lm / time
Min lm / time
Max beam
Length
Weight
Battery
—
Light
Price
Max lm / time
Min lm / time
Max beam
Length
Weight
Battery
—
User manual
Fenix HM65R V2.0 user manual (.pdf)
