ANSI FL-1
Performance by mode

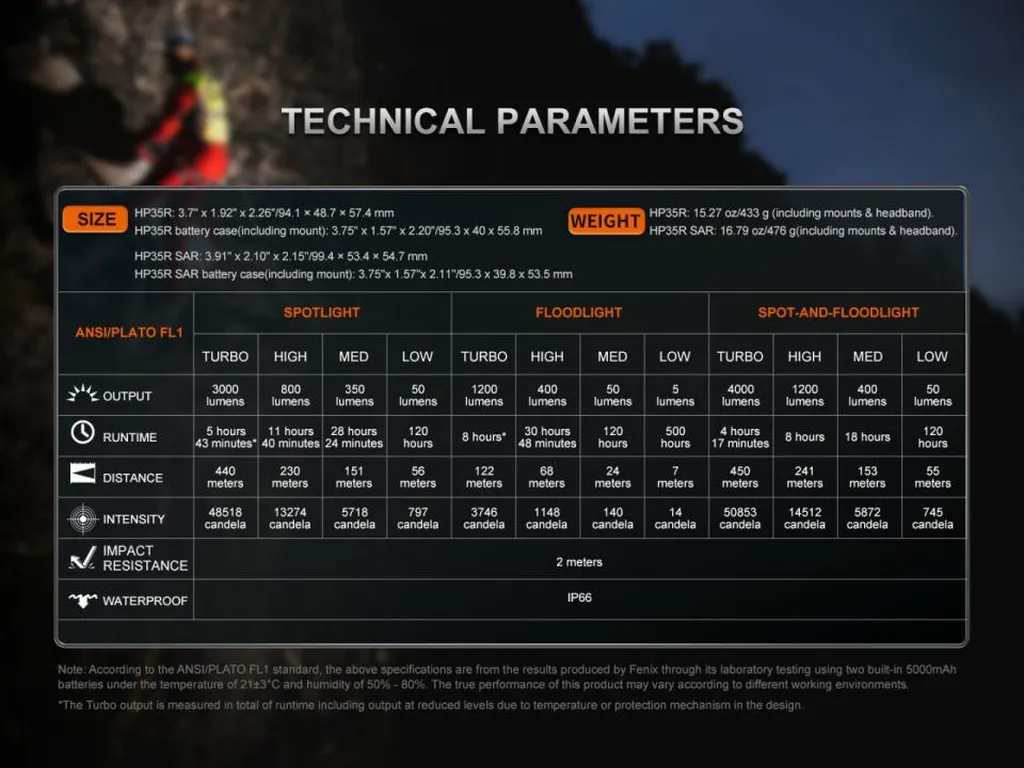

| Mode | Lumens | Runtime | Distance | Intensity |
|---|---|---|---|---|
| Spot and flood turbo | 4,000 | 4h 17min | 450 m | 50853 cd |
| Spot and flood high | 1,200 | 8h | 241 m | 14512 cd |
| Spot and flood med | 400 | 18h | 153 m | 5872 cd |
| Spot and flood low | 50 | 120h | 55 m | 745 cd |
| Spot turbo | 3,000 | 5h 43min | 440 m | 48518 cd |
| Spot high | 800 | 11h 40min | 230 m | 13274 cd |
| Spot med | 350 | 28h 24min | 151 m | 5718 cd |
| Spot low | 50 | 120h | 56 m | 797 cd |
| Flood turbo | 1,200 | 8h | 122 m | 3746 cd |
| Flood high | 400 | 30h 48min | 68 m | 1148 cd |
| Flood med | 50 | 120h | 24 m | 140 cd |
| Flood low | 5 | 500h | 7 m | 14 cd |
Specifications

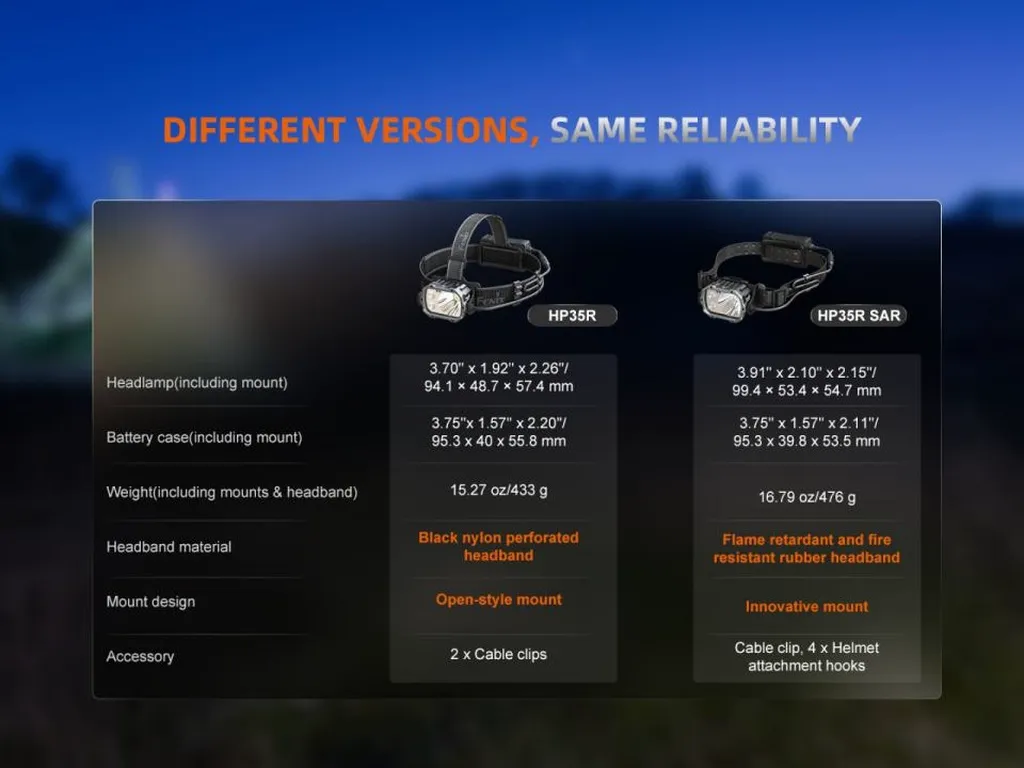

Size STD
Length: 94.1 · Width: 48.7 · Height: 57.4
Weight STD
Including battery: 433
Size SAR
Length: 99.4 · Width: 53.4 · Height: 54.7
Weight SAR
Including battery: 476
Batteries
Built-in 10000mAh Rechargeable Battery Pack.

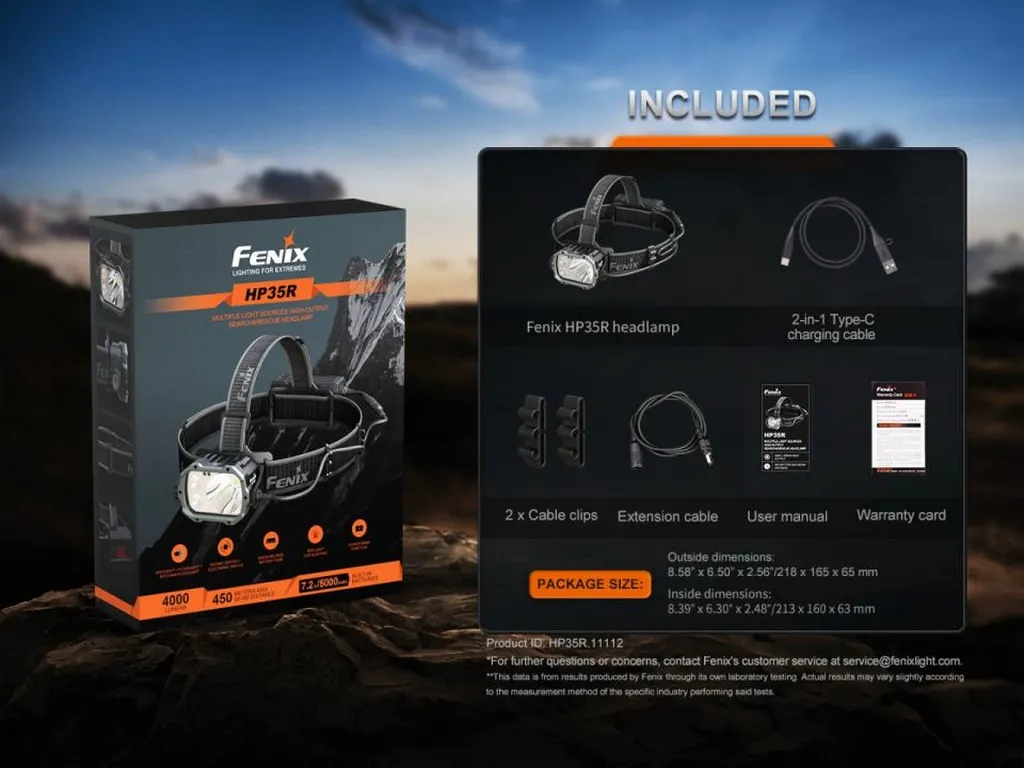

What's included
2-in-1 Type-C charging cable; 2x cable clip (only one for the SAR Edition); 4 x Helmet attachment hooks (SAR Edition only); Extension cable
Key features
- Spot-and-floodlight delivers a max output of 4000 lumens and high CRI floodlight delivers a max output of 1200 lumens.
- 450 meters extended beam distance for the lighting needs in searching, rescuing, exploration, and other outdoor activities that require a higher level of professionalism.

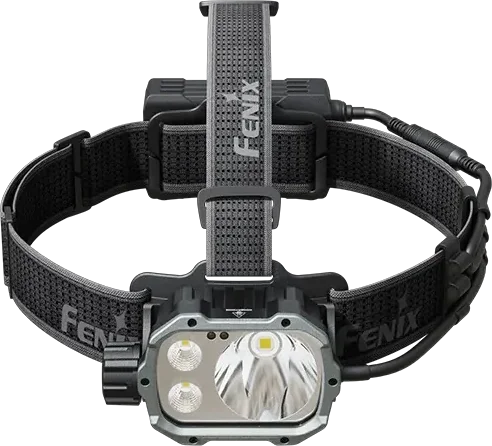

- Utilizes one XHP70 neutral white LED, two Luminus SST20 warm white LEDs; with a life span of 50,000 hours each.

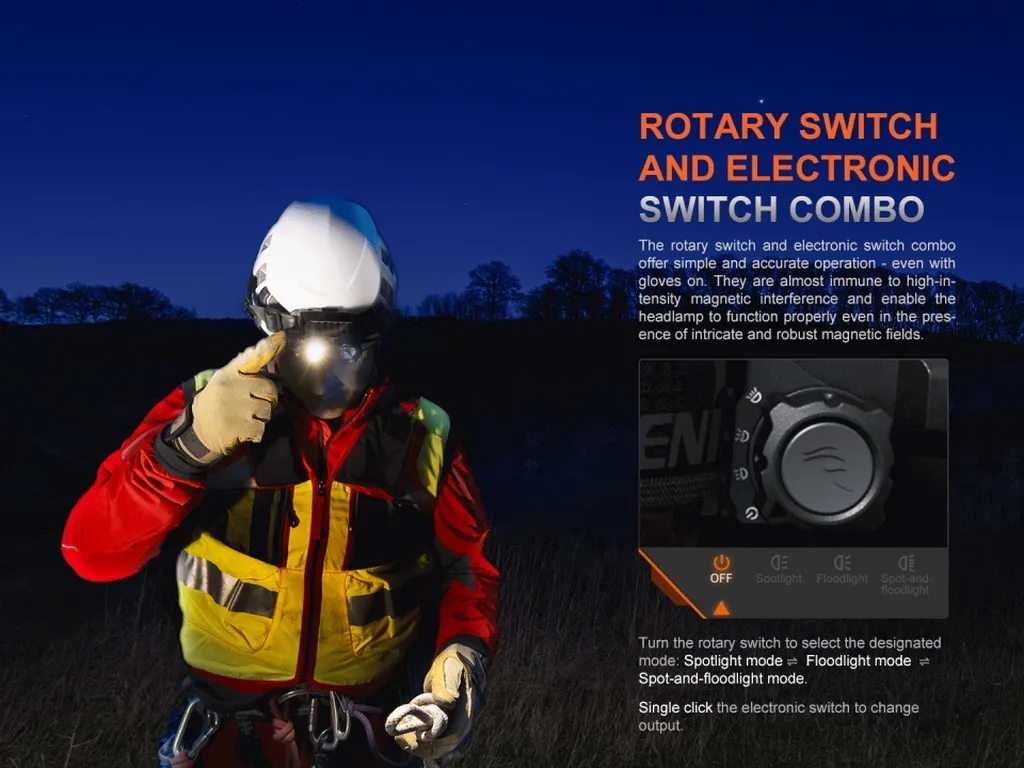

- Rotary switch and electronic switch for easy and fast operation.

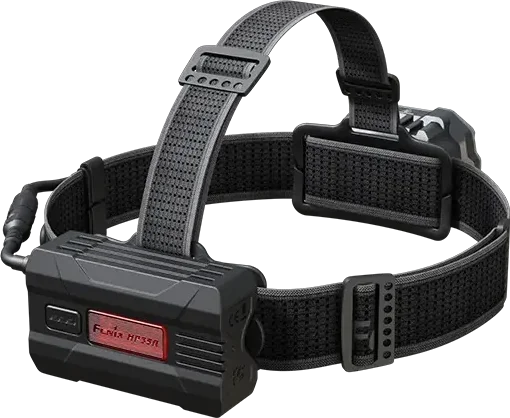

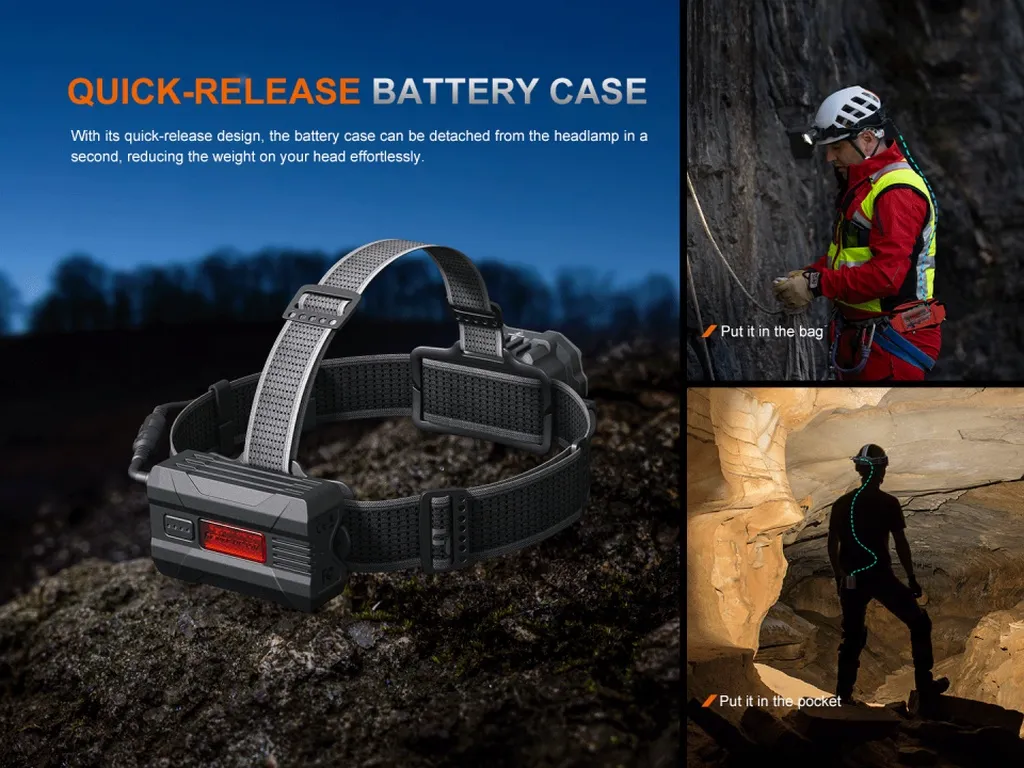

- Quick-release large-capacity battery case with red light function and power bank function.

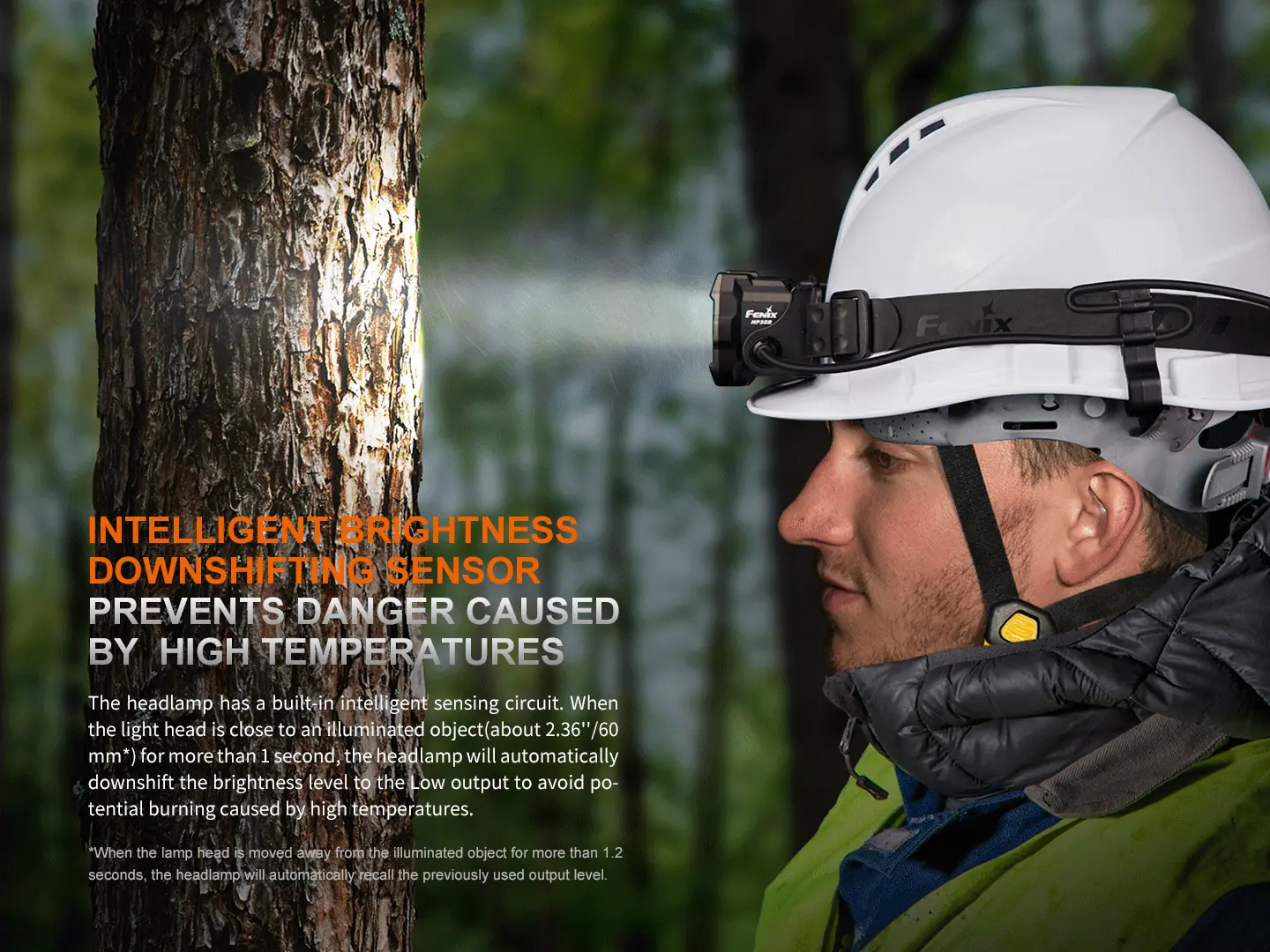

- Intelligent brightness downshifting function to avoid potentially dangerous high temperature(s) at close-range lighting.

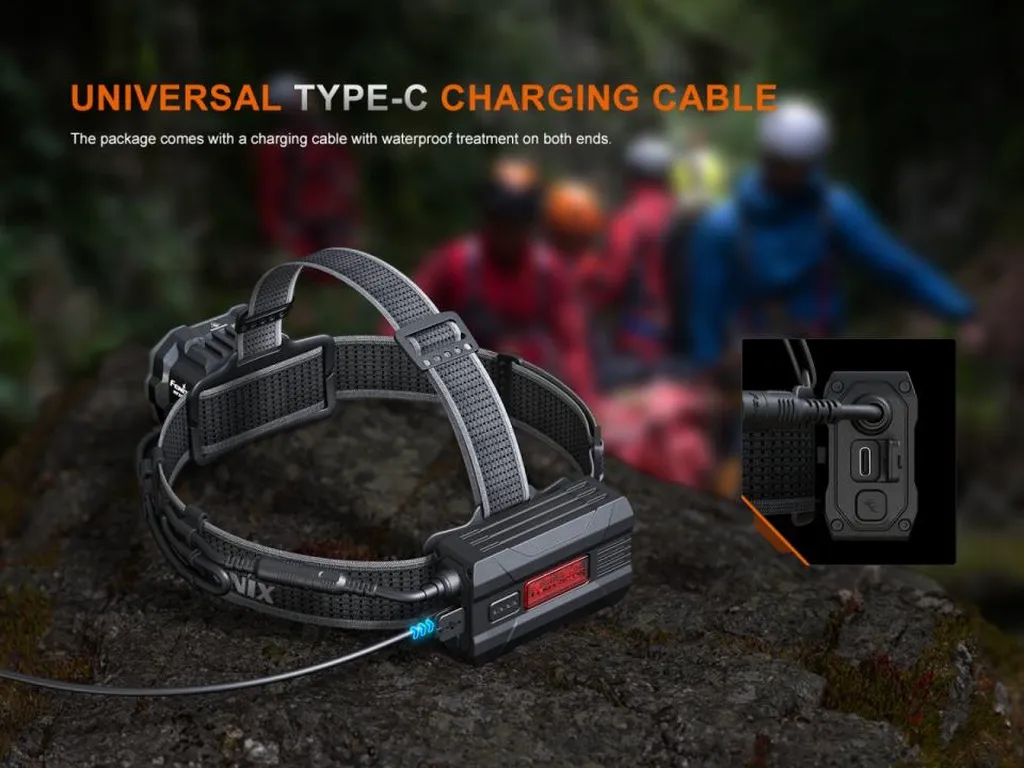

- Inner waterproof USB Type-C charging port.

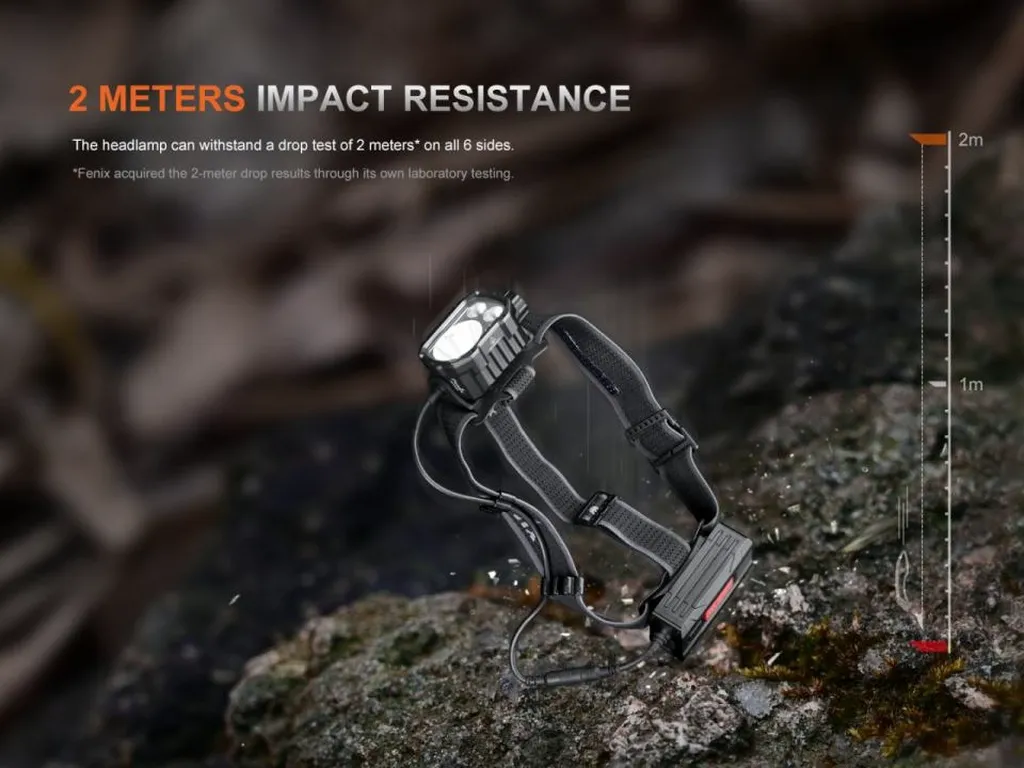

- IP66 rated protection and 2 meters impact resistance.

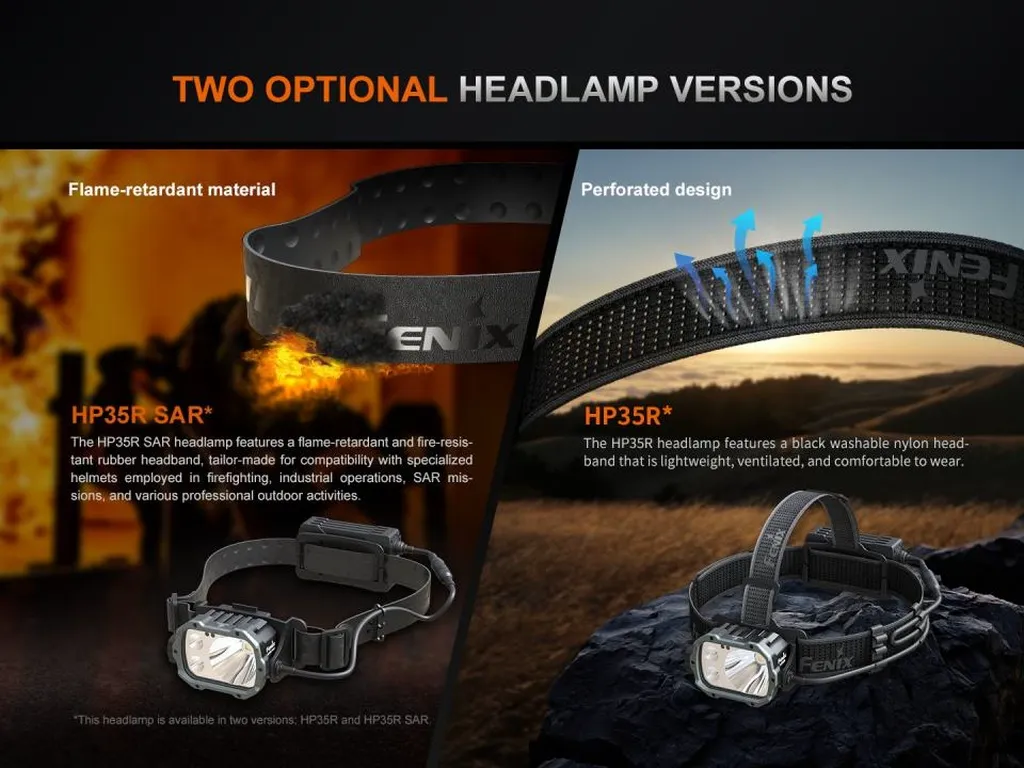

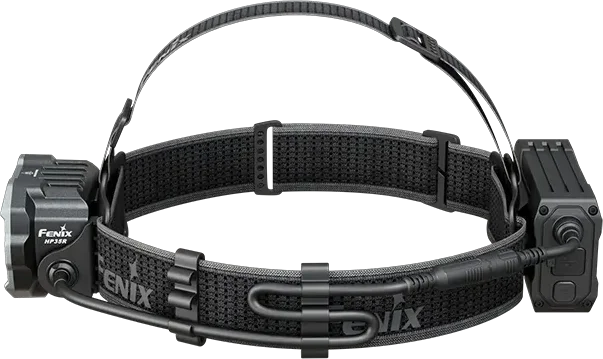

- The HP35R SAR headlamp is designed with a flame retardant and fire resistant rubber headband. Its innovative mount is compatible with the NVG shroud and can be directly attached to it. The HP35R headlamp features a black, washable nylon headband that is lightweight, ventilated, and comfortable to wear. Additionally, the HP35R headlamp and its battery case incorporate open-style mounts that ensure compatibility with not only the Fenix ALG-03 V2.0 headlamp attachment and the Fenix ALG-04 helmet clip but also a broad range of helmet types.
